Digital Canvas Processors

for Video Walls

PanoTek builds world-class visualisation platforms for any need, space or objective.

At the centre of any large-format digital display installation is a processor system, purpose designed for accepting, processing, arranging and rendering potentially hundreds of millions of pixels of visual content.

PanoTek's Digital Canvas Processors are powerful, versatile and scalable graphics servers, equally at home driving mission-critical control room video walls or powering amazing interactive AV installations in public spaces. Choose from several models to match the scale of the installation.

Learn more

LCD VIDEO WALLS

Conventional video walls made up of an array of LCD display panels.

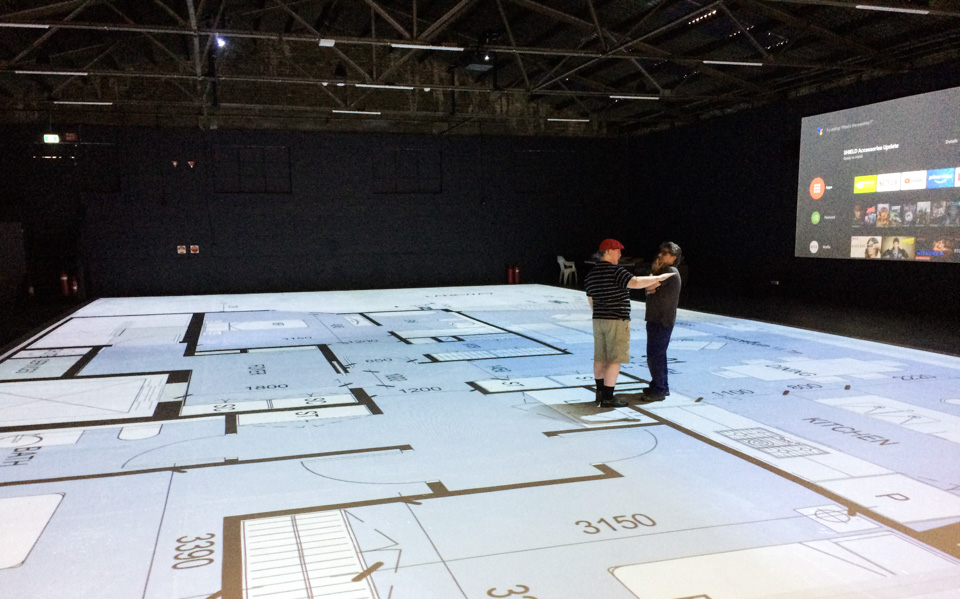

BLENDED PROJECTION

Immersive scene-scapes created with multiple digital projectors.

MODULAR LED

LED tiled surfaces for both functional and architectural installations.

PIXEL POWER

Our Digital Canvas Processors are versatile, robust and scalable — the perfect solution for any visualisation application. To create our unique product solutions, PanoTek partners with specialist technology manufacturers who are recognised as the leaders in their field.

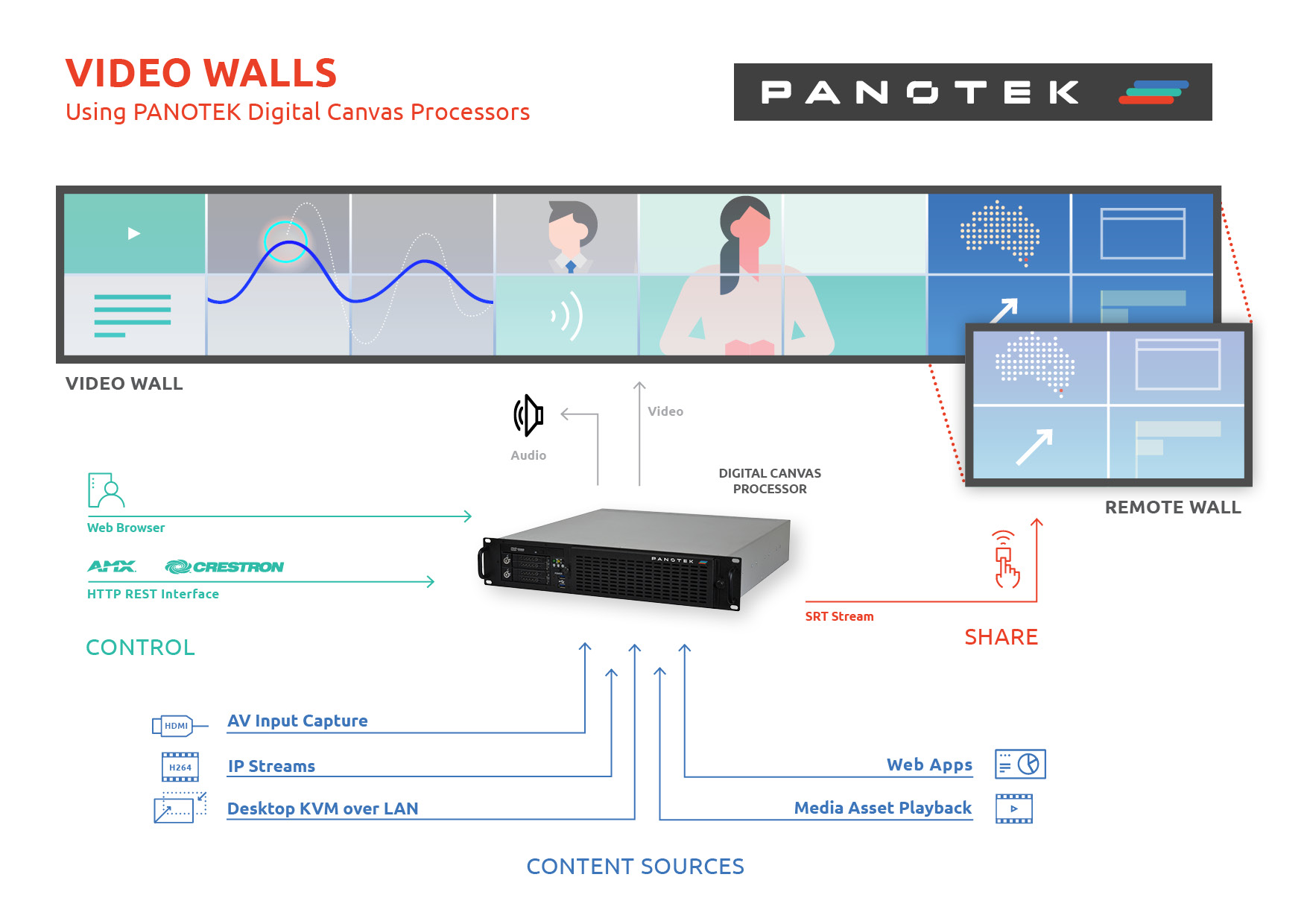

A PanoTek Digital Canvas Processor provides the foundation for large format display or visualisation system.

Our processors are equipped with multiple GPU outputs which can be fanned out to as many as 64 individual HD devices, arranged in a way that they provide one or more large-scale pixel surfaces.

The result is an immersive audio-visual experience, comprising a mosaic of content from multiple sources.

Explainer Video

Key Features

Display Technology

LCD Panel Arrays
Blended Projection Installations
Modular LED Tile Surfaces
Mixed Canvas Structures
Bezel Comp and Edge Overlap
60fps End to End

Content Sources

AV Input Capture
IP Streams
Desktop KVM over LAN
Web Apps
Media Asset Playback

Seamless Canvas

Pixel surface functions as one contiguous canvas
Content can be positioned and scaled anywhere as required
Split the canvas between multiple rooms
Input sources can appear more than once

Interactivity

Use Web Apps interactively
Direct touch with PanoTek's large-format I.R. Touch Overlay
"Pilot mode" to change content layout interactively

Control

Keyboard HotKeys
Mouse, Touch Navigation
Web Browser

Sharing

Mirror to smaller, satellite walls
Encode and stream to remote walls

Automation

Layout Presets
Simple Macro command language

Integration

Simple HTTP REST API
Control from Crestron, AMX

Resilience

Redundant, Hot-Swap PSU Cassettes
RAID-1, Hot-Swap Storage SSD
High Quality Design and Fabrication
Software Sentinel

Experience Superior Flexibility

Our Digital Canvas Processors allow end users to rapidly change the arrangement of content to meet the needs of their situation, allowing users to scale and position content anywhere on the canvas, while always retaining maximum resolution and frame rate.

Virtually every aspect of the system can be controlled through remote automation systems such as AMX or Crestron. This allows System Integrators and AV consultants to confidently deliver visual flexibility and ease of use to their clients.

Applications

Our Digital Canvas Processors offer reliability, scalability and impressive functionality, allowing audio visual designers to focus on addressing more granular client needs. Here are just a few possible applications:

Control rooms
Building lobbies
Art installations
Architectural design
Collaboration and meeting rooms
Information centres
Large scale digital signage walls

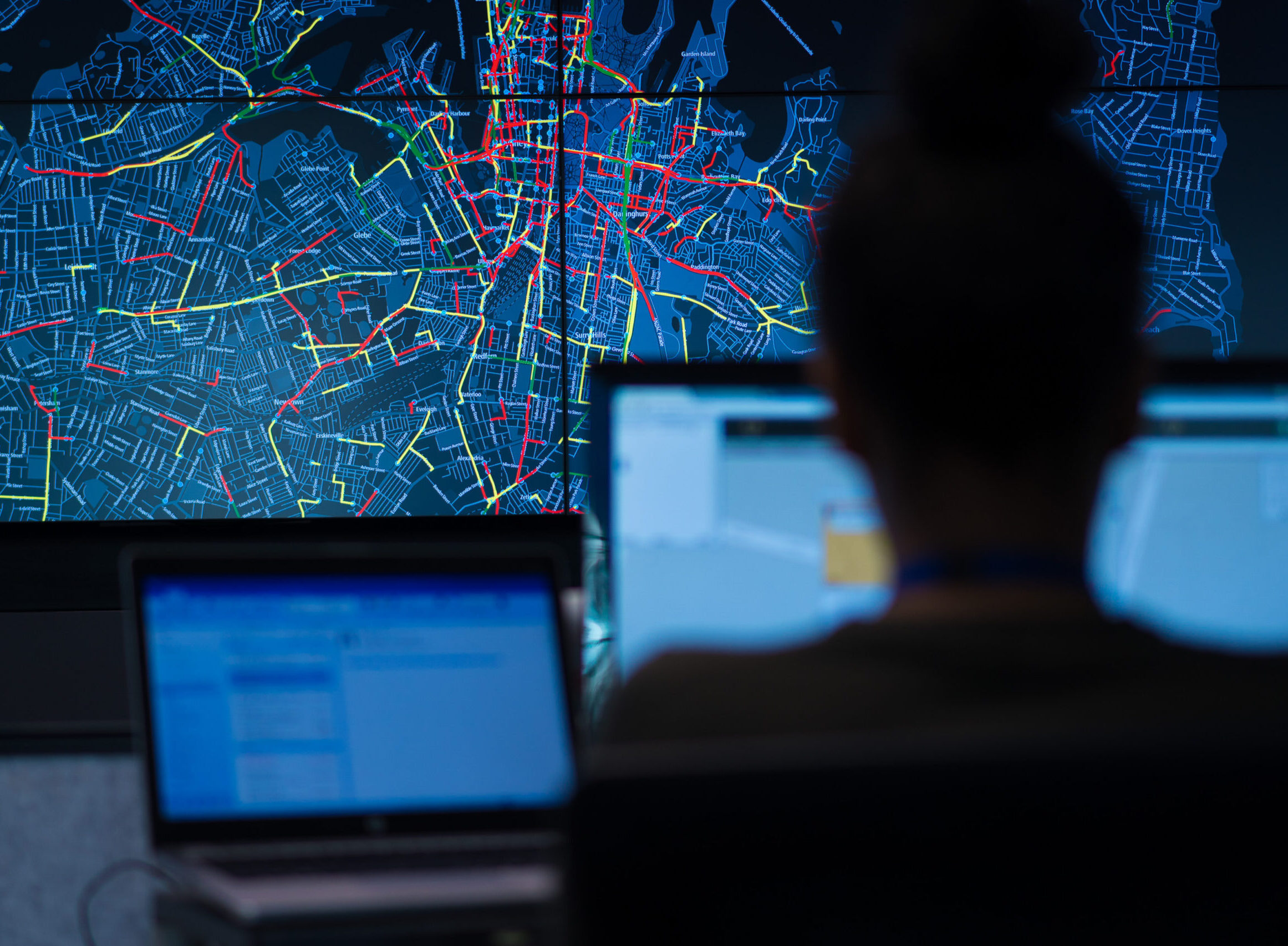

OPERATIONS CONTROL

Control centres where a shared view of many different vision sources and dashboards is needed for monitoring, situational awareness and incident management.

COLLABORATION

Team spaces where a large format interactive canvas is needed for shared visualisation, simulation, planning, design and status review activities.

EXPERIENTIAL

Immersive installations in public spaces, museums, galleries, stadiums and theme parks that deliver amazing, engaging and entertaining experiences for the general public.

Product Models

PanoTek offers multiple Digital Canvas Processor models to meet a diverse range of customer needs.

Each product model has the same functional capability, including dynamic layout control and seamless canvas management with easy-to-use control mechanisms. The choice between models is largely dictated by the scale of the installation and the amount of computing and I/O bandwidth needed.

DCP-1200 Digital Canvas Processor

The DCP-1200 is a powerful yet compact processor suitable for a wide variety of applications; many customers will need look no further than this model.

This is the ideal choice for a canvas up to 32 Megapixels in size. That's enough to power up to an 8x2 or 4x4 video wall constructed with 1080p panels. (Other panel arrangements are also possible).

Maximal Product Configuration

Max GPU Outputs

Max 1080p Displays

Max 4K Displays

Max AV Inputs

AVoIP Streams

MegaPix

DCP-4800 Digital Canvas Processor

The DCP-4800 is our next generation digital canvas processor. It is the platform of choice for ultra high resolution rendering workloads including 3D visualisation, immersive projection, digital set backdrops, massive scale game rendering, VR applications and photo-realistic simulation.

Featuring an all new PCIe Gen4 switchless bus architecture, dual Xeon CPUs and massive internal I/O bandwidth, this system employs the most powerful graphics technology from the best in the business: nVidia Ampere GPU's in conjunction with Matrox IPX for live AV input capture and AVoIP direct decode/encode.

Maximal Product Configuration

Max GPU Outputs

Max 1080p Displays

Max 4K Displays

Max AV Inputs

AVoIP Streams

MegaPix

128

How to get started

To get started, schedule a demo by contacting PanoTek today. We do virtual demos by screen share and camera so we can service customers in any location.

PanoTek offers expert pre-sales advice to consultants, integrators and end customers. We distinguish ourselves through our technical capability and our responsive customer service approach.

Solutions are delivered to customers through a network of AV solutions partners.

Do give us a call on +61 3 9024 8711 or send us an email to sales@panotek.com.
